    BS34 to BS34SS Swap

    Hello, I am looking for new carbs for my 77 GS400 which has the BS34 carbs. Unfortunately, these were only used on one model, for one year I believe, so finding a replacement has been hard. I looked at the spec sheet on BassCliffs website and the jetting is a bit different for the BS34SS but they look almost the exact same. I was wondering if anyone had any experience switching between these carbs or could offer me any advice on whether it would work. Thank you.

    #2
    Switching between the two variants should be no problem. The engine is the same.
    Ed

    To measure is to know.

    Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

    Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

    Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

    KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

    Comment


      #3
      Oh good to hear. Should I switch all the jets that I have in my BS34 to the BS34SS so that it would match what I have now or just leave it alone?

      Comment


        #4
        Dude, there are too many separate threads on this same topic. Please keep the discussion together for better information sharing.

        Regarding changing carbs, if you do so, keep the jetting native to the carbs in question. Don't mix and match jets between different models of carbs because things like the air jets, and slide cutaway, affect the jetting.

        That said, I'd focus my attention on getting the broken screw tip out. It can be done, as evidenced by many that have done so before you.

        Get a pin or pick tool, and try to push the tip backwards. Or reach in though the threads and try to knock the tip sideways, dislodging it. There are ways...
        Ed

        To measure is to know.

        Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

        Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

        Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

        KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

        Comment


          #5
          I have a pick tool, the problem is that the tip does not poke through the carb throat so there is nowhere to push it back through.
          Last edited by gorillafan208; 04-19-2023, 10:46 AM.

          Comment


            #6
            Originally posted by gorillafan208 View Post
            I have a pick tool, the problem is that the tip does not poke through the carb throat so there is nowhere to push it back through.
            Put a pin into the orifice in the carb throat, and push the tip that way. Also, like I said, reach in though the threads. And be sure to soak the tip in PB Blaster, and use heat on the carb body too.
            Ed

            To measure is to know.

            Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

            Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

            Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

            KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

            Comment


              #7
              I have tried pushing it up from the little orifice with a pick after heat cycling it and didn't have any luck, but I can try reaching in through the threads

              Comment


                #8
                you can also try putting the carb body in a ultra sonic cleaner, preferable a self heating type.

                If you don't have one try to become friends with a small automotive shop that may, see if you can use theirs for a small fee.

                the heat and the shaking may loosen the tip, no guarantees.
                78 GS1000 Yosh replica racer project
                82 Kat 1000 Project
                05 CRF450x
                10 990 ADV-R The big dirt bike

                P.S I don't check PM to often, email me if you need me.

                Comment


                  #9
                  Hey guys, I ended up just getting a new set of GS450 replacement carbs. They are very clean and in good condition the only annoyance is that one of the mixture screws is missing and I am having trouble finding a replacement. Looking on Suzuki Parts House, I wasn't able to find the part number for one of these guys and couldn't find them on Jetsrus either. I tried looking on ebay, but couldn't find the exact same one. I am guessing the carbs are from a 450L, as they look like these ones from the 1980 GS450L carb cleaning guide on BassCliff's website. Anyone know the part number or know a place where I could get one?
                  Attached Files

                  Comment


                    #10
                    Originally posted by gorillafan208 View Post
                    Hey guys, I ended up just getting a new set of GS450 replacement carbs. They are very clean and in good condition the only annoyance is that one of the mixture screws is missing and I am having trouble finding a replacement. Looking on Suzuki Parts House, I wasn't able to find the part number for one of these guys and couldn't find them on Jetsrus either. I tried looking on ebay, but couldn't find the exact same one. I am guessing the carbs are from a 450L, as they look like these ones from the 1980 GS450L carb cleaning guide on BassCliff's website. Anyone know the part number or know a place where I could get one?

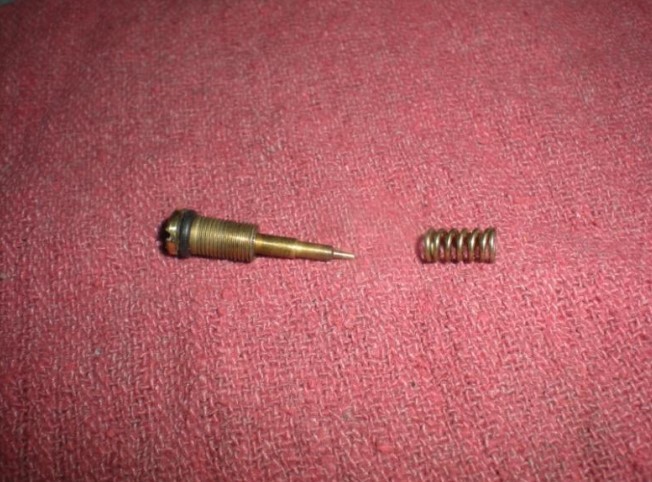

                    here is the screw
                    Attached Files

                    Comment


                      #11
                      Have you searched eBay for 450 carb kits? Hopefully, some kit will have them.
                      Ed

                      To measure is to know.

                      Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

                      Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

                      Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

                      KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

                      Comment


                        #12
                        I have, I haven't found any that match it. It's weird, someone found a replacement mixture screw for my BS34 carbs in like 30 seconds while I can't find any for these BS34S carbs which were way more prevalent. This may be a dumb question, but if I find one that has the same length and width at the tip would that work as a replacement if I can't find an exact match?
                        Last edited by gorillafan208; 04-29-2023, 06:35 PM.

                        Comment


                          #13


                          Will these work?
                          Ed

                          To measure is to know.

                          Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

                          Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

                          Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

                          KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

                          Comment


                            #14
                            Just use the screw and o-rings you need the chuck the rest, it'll avoid a lot of headaches trying to get the knock off parts to work right
                            1980 Yamaha XS1100G (Current bike)
                            1982 GS450txz (former bike)
                            LONG list of previous bikes not listed here.

                            I identify as a man but according to the label on a box of Stauffers Baked Lasagne I'm actually a family of four

                            Comment


                              #15
                              I dont think those are a match Nessism unfortunately. And LAB3, I do know not use knockoff gaskets etc, I just can't find any screw that matches it in the first place. I think I am gonna call the really old shop near me in the unlikely chance they might have any tucked away somewhere
