Carburettor "Clamp"

[Syd]

G'Day GSR Folks

I'm still plodding along with my 1980 GS1000G (T) refurbishment.

A couple of days ago, I started some final work on the carbs and came across a small conundrum. There's an item known as a "clamp" (according to the Suzuki parts fiche).

My issue is I can't work out where this clamp is attached to the carb assembly. Can anyone provide some advice on how this is orientated?

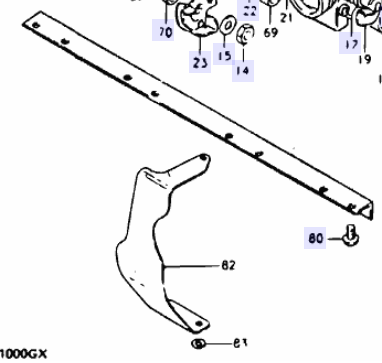

The item is number 82 in the image below.

https://postimg.cc/8f5tvsk9

Cheers

[Nessism]

Look at the 1100G factory manual, section 5-9.

https://gsarchive.bwringer.com/mtsac/~cliff/storage/gs/GS1100G-L-K_Manual.pdf

[Syd]

G'Day GSR Folks

I'm still plodding along with my 1980 GS1000G (T) refurbishment.

A couple of days ago, I started some final work on the carbs and came across a small conundrum. There's an item known as a "clamp" (according to the Suzuki parts fiche).

My issue is I can't work out where this clamp is attached to the carb assembly. Can anyone provide some advice on how this is orientated?

The item is number 82 in the image below.

https://postimg.cc/8f5tvsk9

Cheers

Thanks Nessism - BRILLIANT!. That's the manual that I needed. All the other manuals I have either don't address this or the images are way too dark to make any sense.
