    (SORRY!) Carb Dip Question

    Yes i used the search went thru 6+ pages and didn't get any definitive answers.What is a good dip with can at good price ,alot guys were saying new stuff sucks? This is the first time doing bike carbs,im doing it by the info on the sight so i guess its ok to leave the throttle valves in?The seals wont get hurt in the dip? I have 3 carbs totally apart (left 1 together for reference)only stipped one screw so far.I've got the o-rings coming. I bought new bowl gaskets (not cheap must be made by NASA) so i just need the dip for now.How long do you leave the carbs in? My carb are of my newest project 83 GS 1100 E (BS34SS) thanks for any info.

    #2
    I think the consensus is the Berryman Chem-dip parts and carb cleaner in the 1 gal bucket with basket. I got mine at the local Autozone and I've seen it at the local O'Rileys. $19...

    Comment


      #3
      Make sure you get EVERYTHING except the throttle blades out of the carb bodies, then dip them for 24 hours.

      Among the things you want to make sure you get out are the idle mixture adjustment screws. If your carbs have never been touched before, they will still be hidden under metal caps, and you may not realize they are there. Remove the caps, remove the screws, along with the spring, metal washer and o-ring that live in that hole.

      I tend to put the carb body, float bowl and all the jets for that one carb in the dip at the same time. The next day, take those parts out, rinse them in warm water, put the next set of the parts in the dip. After you get the next set of parts in the dip, go back, clean all the holes in all the jets with a strand of copper wire, then spray them with carb cleaner spray and then hit them with some compressed air to make sure everything is clear.

      Don't forget the passage in the float bowl, but be sure you are still wearing your safety glasses when you do that. (You were already wearing them, weren't you?) When you spray into that little hole in the bottom, it will come right back at you out that hole in the edge.

      .
      sigpic
      mine: 2000 Honda GoldWing GL1500SE and 1980 GS850G'K' "Junior"
      hers: 1982 GS850GL - "Angel" and 1969 Suzuki T250 Scrambler
      #1 son: 1986 Yamaha Venture Royale 1300 and 1982 GS650GL "Rat Bagger"
      #2 son: 1980 GS1000G
      Family Portrait
      Siblings and Spouses
      Mom's first ride
      Want a copy of my valve adjust spreadsheet for your 2-valve per cylinder engine? Send me an e-mail request (not a PM)
      (Click on my username in the upper-left corner for e-mail info.)

      Comment


        #4
        Berryman's is the stuff. Also, make sure you're wearing rubber/nitrile gloves (doubling up on the gloves ain't a bad idea) and long sleeves when placing/removing parts into your Chemdip can - that stuff is fairly caustic so you don't want it on your skin.

        Comment


          #5
          I dip each carb over night or until they are clean. No reason to leave them in the sauce for longer than necessary. 24 hours may be necessary if the bike has been long neglected but overnight typically does it in my experience (particularly if the dip is fresh).
          Ed

          To measure is to know.

          Mikuni O-ring Kits For Sale...https://www.thegsresources.com/_foru...ts#post1703182

          Top Newbie Mistakes thread...http://www.thegsresources.com/_forum...d.php?t=171846

          Carb rebuild tutorial...https://gsarchive.bwringer.com/mtsac...d_Tutorial.pdf

          KZ750E Rebuild Thread...http://www.thegsresources.com/_forum...0-Resurrection

          Comment


            #6
            Originally posted by 80GS1000 View Post
            Berryman's is the stuff. Also, make sure you're wearing rubber/nitrile gloves (doubling up on the gloves ain't a bad idea) and long sleeves when placing/removing parts into your Chemdip can - that stuff is fairly caustic so you don't want it on your skin.
            Sh!t, this CA hippy stuff tastes like ginger ale.
            1983 GS 1100E w/ 1230 kit, .340 lift Web Cams, Ape heavy duty valve springs, 83 1100 head with 1.5mm oversized SS intake valves, 1150 crank, Vance and Hines 1150 SuperHub, Star Racing high volume oil pump gears, 36mm carebs Dynojet stage 3 jet kit, Posplayr's SSPB, Progressive rear shocks and fork springs, Dyna 2000, Dynatek green coils and Vance & Hines 4-1 exhaust.
            1985 GS1150ES stock with 85 Red E bodywork.

            Comment


              #7
              GINGER ALE???


              It's supposed to be more like cream soda!

              .
              sigpic
              mine: 2000 Honda GoldWing GL1500SE and 1980 GS850G'K' "Junior"
              hers: 1982 GS850GL - "Angel" and 1969 Suzuki T250 Scrambler
              #1 son: 1986 Yamaha Venture Royale 1300 and 1982 GS650GL "Rat Bagger"
              #2 son: 1980 GS1000G
              Family Portrait
              Siblings and Spouses
              Mom's first ride
              Want a copy of my valve adjust spreadsheet for your 2-valve per cylinder engine? Send me an e-mail request (not a PM)
              (Click on my username in the upper-left corner for e-mail info.)

              Comment


                #8
                I don't think the new dip is as good "as in the old days." I rememebr that stuff being overwhelming in smell and cleaning ability. I bought a new can a couple months ago and it just aint the same. It did a good job and the bike runs great, just not what it used to be...

                Comment


                  #9
                  Dunno if you can get it anymore, but I've got a nice big jug of Kleen-flo carb dip. $90, but it's wicked awesome! It'll stink up anything it touches for a week at least. I still have tools that smell like it, and I haven't dipped anything in almost a year. It eats through nitrile gloves eventually, melts latex pretty much instantly. It's not cheap, and I don't even know if it's available anymore. I got it at the local Napa parts store. Probably not all that environmentally friendly, comes in a metal jug, which is in a very thick plastic bag. I guess to prevent spills.

                  Berryman's seems to be the dip of choice for most guys though. I've never seen it for sale anywhere up in Canuckistan.

                  Comment


                    #10
                    Gunk carb dip seems about as good as Berryman's. It's a bit clearer as well, so it's easier to find itty-bitty parts you may drop in it. I also like Gunk's basket a bit better.

                    I missed the memo about cleaning up the outside of the carbs first to make your dip last longer. So now I have two cans - the dirty Gunk and the clean Berryman's. Carb bodies and bowls go into the gunk first to get the major external dirt off first - then into the cleaner Berryman's with all of the little bits.

                    Comment


                      #11
                      Originally posted by mike_of_bbg View Post
                      Gunk carb dip seems about as good as Berryman's. It's a bit clearer as well, so it's easier to find itty-bitty parts you may drop in it. I also like Gunk's basket a bit better.

                      I missed the memo about cleaning up the outside of the carbs first to make your dip last longer. So now I have two cans - the dirty Gunk and the clean Berryman's. Carb bodies and bowls go into the gunk first to get the major external dirt off first - then into the cleaner Berryman's with all of the little bits.
                      I have two cans too but to speed the process along.
                      1983 GS 1100E w/ 1230 kit, .340 lift Web Cams, Ape heavy duty valve springs, 83 1100 head with 1.5mm oversized SS intake valves, 1150 crank, Vance and Hines 1150 SuperHub, Star Racing high volume oil pump gears, 36mm carebs Dynojet stage 3 jet kit, Posplayr's SSPB, Progressive rear shocks and fork springs, Dyna 2000, Dynatek green coils and Vance & Hines 4-1 exhaust.
                      1985 GS1150ES stock with 85 Red E bodywork.

                      Comment


                        #12
                        I used the $30 Napa dip..
                        It's the new Enviroment friendly(ish) version but it still works fine.
                        How well does it work? I had pilot screws that you couldn't remove..
                        I'm talking broken ez-out kinda stuck..
                        After a 3 day tour in the dip I took em out with a screwdriver.

                        Frozen master cylinder.. couldn't move the piston at all..
                        Chucked it in the dip for a week and pulled it out without scoring up the bore.

                        This new dip isn't as caustic as the old stuff so it won't attack rubber or corrode parts left in for extended periods.. It will swell rubber parts though..
                        I forgot the cup O-ring on the master cylinder. After a week in the dip it was 2x it's original diameter but still flexible. It didn't turn to goo or fall apart.

                        That is my experience anyway.

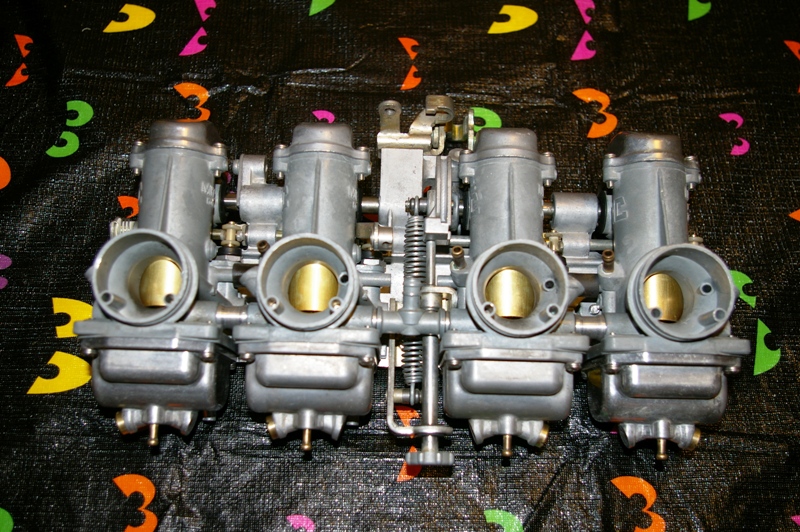

                        These are the carbs I did
                        Everything metal saw some dip time. Even the frame.. (dip it one end at a time)
                        Soak, pull em out, dunk in a bucket of water to get the dip off.. blow out with compressed air.. let dry.

                        Last edited by Guest; 02-11-2010, 01:25 PM.

                        Comment


                          #13
                          on a similar subject, what is the best solution to use in an ultrasonic cleaner, for carbs, or steel parts?
                          1978 GS1085.

                          Just remember, an opinion without 3.14 is just an onion!

                          Comment


                            #14
                            Hey thanks for all the info,i picked up the berrymans dip.I do have all the parts out including the air screws . I was cleaning up the small parts for the dip when i noticed the needle valve seat has the screen with a plastic ring holding it on ,how do i get them off with out breaking them?I want to dip the seat but i guess i could spray by hand. I appreciate you guys helping me because i know you have heard these questions hundreds of times before (Boring!). Thanks

                            Comment


                              #15
                              I just did my rack 2 weeks ago, followed what Steve said, left in Berrymans for 24 hrs, with all rubber out of carbs. Came out nice and clean and bike sounds great.
