Z1 Enterprises fuel Tee

[derekb]

Has anybody installed one of these in their GS? Better yet, did you have fitment issues? I got 1 side of the Tee to fit into either carb, but the other Tee side was either machined wrong or the Orings are to thick. I have put bearing races in the deep freezer before to slightly shrink them for easier installation but fear the Orings would just become brittle. I have also reached out to Z1 to possibly swap this one but of course they are in FL and I'm in WA.

[derekb]

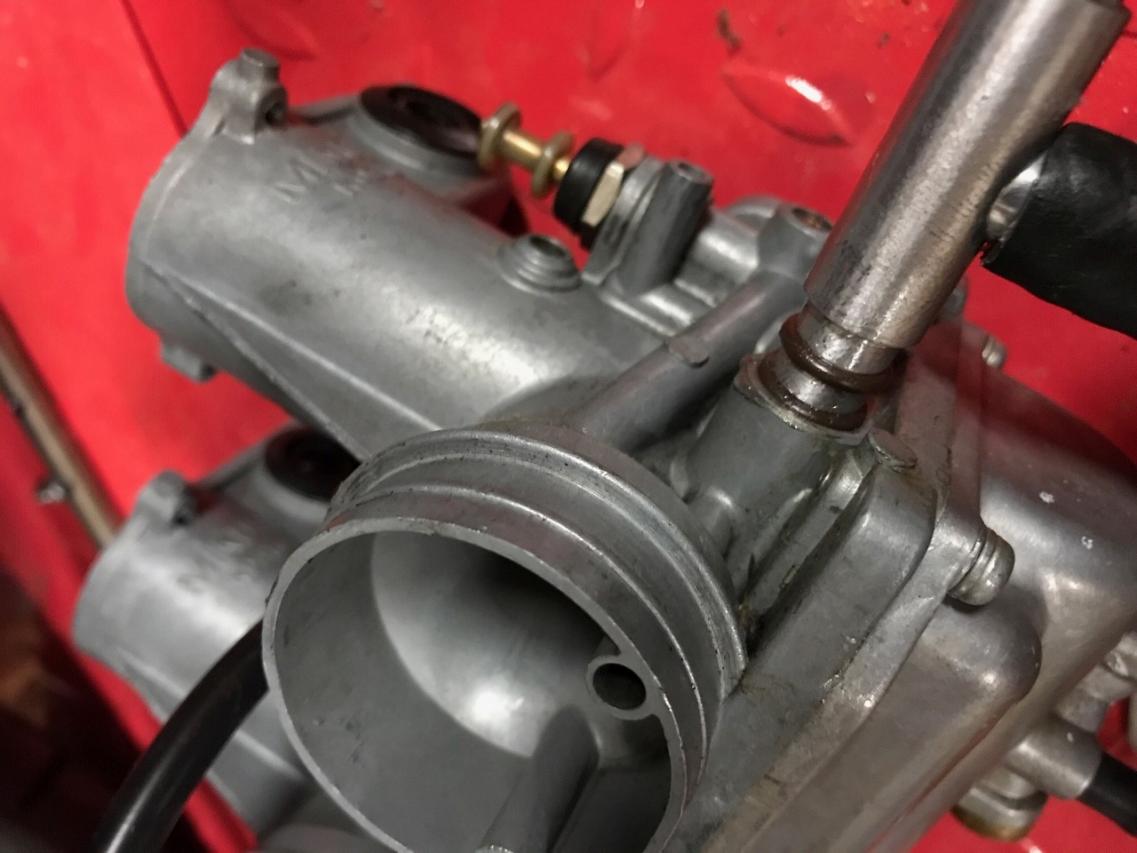

another pic

Here is another picture

[alke46]

I remember having similar problems. I think I just lubed the one with tire lube and it eventually slid into place.
Either that worked or maybe I had to replace one of them. Not sure, it was a few years ago.

[derekb]

I tried the trusty petroleum jelly but that encouraged the oring to slide out of its seat. Maybe Ill pick up a couple viton orings at the store today.

[Agemax]

I tried the trusty petroleum jelly but that encouraged the oring to slide out of its seat. Maybe Ill pick up a couple viton orings at the store today.

You need nitrile for those o rings, not viton.

[derekb]

Buna, Nitrile and Viton are all gasoline compatible. Got any tips to install?

[Grimly]

Warm the recess area of the carb body with a hot air gun and freeze the t-piece.
Most o-ring materials are fairly tolerant of low temps.

https://www.marcorubber.com/o-ring-material-quick-reference.htm

[derekb]

Good info. Ill give it a try.
Heat guns and carburetors..... my favorite combination hahaha

[Agemax]

Buna, Nitrile and Viton are all gasoline compatible. Got any tips to install?

True, but they are all suited to different applications. You wouldn't want those O rings to fail, fuel leaks are never good at the best of times and it wont be a quick fix if they do.
I have installed quite a few of these Tee's and personally never had an issue. Just make sure the orificies are spotless clean and with a bit of lube, they slide in, nice and snug.

[CrazyCloud]

Has anybody installed one of these in their GS? Better yet, did you have fitment issues? I got 1 side of the Tee to fit into either carb, but the other Tee side was either machined wrong or the Orings are to thick. I have put bearing races in the deep freezer before to slightly shrink them for easier installation but fear the Orings would just become brittle. I have also reached out to Z1 to possibly swap this one but of course they are in FL and I'm in WA.

My Z1 fuel T leaked with the orings that came with it (78 GS750). I reinstalled with the o-rings from the Robert Barr kit and have not had any trouble since.

[LAB3]

Anybody have the size of those orings written down or committed to memory? Should probably get some for mine (stock) due to a very slow leak (more like seep)

[derekb]

11 OD
7 ID
2 thick
All in MM

Z1 sent me 2 different sized orings on the Tee. They are shipping me 2 more of the correct sized rings and Ill be good to go. HMMM Or go to HF and buy a nitrile 300pc set for 4.99 with an additional 20% off coupon. Im actually going to wait. haha

[LAB3]

11 OD
7 ID
2 thick
All in MM

Z1 sent me 2 different sized orings on the Tee. They are shipping me 2 more of the correct sized rings and Ill be good to go. HMMM Or go to HF and buy a nitrile 300pc set for 4.99 with an additional 20% off coupon. Im actually going to wait. haha

Thanks for the info!

[Nessism]

I had the same problem with that Tee. The O-rings are too fat. I replaced the originals with some from a Harbor Freight O-ring variety pack. Can't remember the sizes though. At any rate, I was not happy with that Tee and wouldn't recommend it for that reason.

[chuck hahn]

Tee and crossovers are great....just the wrong orings. Maybe someone with a spare from Robert needs to send Jeff or Chris one so they can order the correct sizes to send with them???
