    1985 Canadian GS750ES need help with buying parts.

    Hi to Everybody.Especially gurus of that forum need your help a lot!

    My post related to Suzuki GS750ES 1985yy produce, I assume it is rare bike for this forum because there is almost nothing about that specific model) with nice half fairing ( with some lost parts got it like that...)
    Need collective brain and help. Instead of creating multiple topics in different categories I just will post it here. Might be at the end nice for the others to use too
    I'm in troubles of choice, have read tooons of posts but still in dough's where and what to buy. I'm doing season service on my beloved bike + want to upgrade/change some parts for better. I'm not aggressive rider mostly touring, but like to enjoy twist of throttle some times.
    Here is a list

    1. Brakes
    a)Original are ok with me, I just need advice what brake pads to buy and where. Did some research what is the best? Organic. semi-ceramic or ceramic? I do not care about resource of disks.
    b) Where do you buy stainless still lines?
    c) Should I install emulators on antidive and where to get them? It seems not leaking but does not seems working either

    2.Suspension
    Forks and rear shock
    a)I probably will go for Sonic, just not sure what parameters to choose
    b) Rear monoshock - My big headache, Last time I just add oil to original and it seems kind of worked for a season, not leaking etc. but it feels to "stiff" for me. even with passenger
    Which one to choose and install for budget, not chinese chipo but not a superexpensive(I know Ohlings are perfect)...?

    c) Was out of luck finding dust "caps" for the fork, can somebody throw a link on them for me please please please.

    3. Wheels and bearings
    a)I had front wheel with huge disbalance last time, fixed it on balancer but I'm not 100% sure, which one better to buy, just looking for same replacement.

    b)Bearings front and back. Which are the best to go?


    4. Transmission
    a)Sprockets front/back
    What ratio to choose? Looking to slightly decrease highway RPM, is it worth it? Because of the small vibration around 5-6k RPM most usable on interstate...over long distance hands were going numb...made 2k miles from Toronto to Boise in 5 days, very nice ride!
    Have a new chain with old sprockets, I know it is not cosher...at that time had no choice.
    b)need clutch and advice which one to buy. My thoughts are around that rubber/plastic dumpers which gone over the time...should I weld busket? or just go for new one?
    as I suspect that's what gives vibrations and rattling noise on the low rmps 1000-900, like ddrdrdrdrdrd, slightly up and all noise gone

    5. Speedo cable...where to get original one or one which fits?
    another story of headache, because I used non original cluster first and ended up with broken speedodrive + cable...
    Now I got original, but cable broke.

    I hate for posting, mostly reading here, nut all this dough's drive me crazy and season is coming. Will really appreciate any help, can bring some beer in exchange) to some who is local to Boise)

    #2
    I'll answer the ones I'm sure about:

    Brake lines

    His ebay auction.
    https://www.ebay.com/itm/APEX-Stainless-Steel-Brake-Hose-Line-Lines-GS750E-GS750-GS-750-Anti-Dive-1982-83/401498212024?hash=item5d7b2886b8:g:HgcAAOSw4D5akhF V&vxp=mtr
    He's great. Just confirm the length of your front Master Cylinder to splitter line because it is different from the 750E.

    I just did emulators and sonic springs. Highly recommend.

    You can just delete the anti-dive line. (Two less lines to buy). It will tighten up your front brakes and improve the ride and handling. Then you can just leave the anti-dive units in place or create or buy block off plates. I made block off plates but if I had to do it again I would have just left the units in place. Some people think they are ugly. So much easier to just leave them.

    Sonicsprings.com has a calculator to choose spring tension. Rich Desmond is very knowledgeable and will probably post once he sees that you are asking about suspension.

    I had a 700ES but the monoshock was good so I can't help there.

    Some good fork seals and dust caps:


    That's it for me.

    Best of luck.
    Gary
    Last edited by glib; 03-04-2018, 04:00 AM.
    sigpic
    1983 GS1100ES (Bought July 2014)
    1983 GS1100E (Bought July 2014)
    1985 GS700ES (Bought June 2015) Sold
    On Christ the Solid Rock I Stand
    All Other Ground is Sinking Sand

    Comment


      #3
      Thank you! I'll just block antidive then, because to me it seems like it's not working and I have not will or wish to mess with them. Also I had big problem trying to find dust caps last time ended up using rubber sleeve probably from control rod from some VW or smthng like that, with zip ties on the top of the leg, works fine but looks not so... I hope it will work this time. Thank you one more time!

      Comment


        #4
        Originally posted by AxelP View Post
        Thank you! I'll just block antidive then, because to me it seems like it's not working and I have not will or wish to mess with them. Also I had big problem trying to find dust caps last time ended up using rubber sleeve probably from control rod from some VW or smthng like that, with zip ties on the top of the leg, works fine but looks not so... I hope it will work this time. Thank you one more time!
        You should be able to just remove the anti-dive line and move the "banjo" bolt for the single fitting from the anti-dive unit to replace the one on the caliper which would now be too long since there is only one fitting left there.
        sigpic
        1983 GS1100ES (Bought July 2014)
        1983 GS1100E (Bought July 2014)
        1985 GS700ES (Bought June 2015) Sold
        On Christ the Solid Rock I Stand
        All Other Ground is Sinking Sand

        Comment


          #5
          Is one of these 750s your bike????

          Shop our large selection of Suzuki 1986 Motorcycle OEM Parts, original equipment manufacturer parts and more online or call at (231)737-4542
          MY BIKES..1977 GS 750 B, 1978 GS 1000 C (X2)
          1978 GS 1000 E, 1979 GS 1000 S, 1973 Yamaha TX 750, 1977 Kawasaki KZ 650B1, 1975 Honda GL1000 Goldwing, 1983 CB 650SC Nighthawk, 1972 Honda CB 350K4, 74 Honda CB550

          NEVER SNEAK UP ON A SLEEPING DOG..NOT EVEN YOUR OWN.


          I would rather trust my bike to a "QUACK" that KNOWS how to fix it rather than a book worm that THINKS HE KNOWS how to fix it.

          Comment


            #6
            You can see some pics of the one I did a few years back...



            (Link to pics if you can't see the linked one http://s6.photobucket.com/user/salty...0679482&page=5)

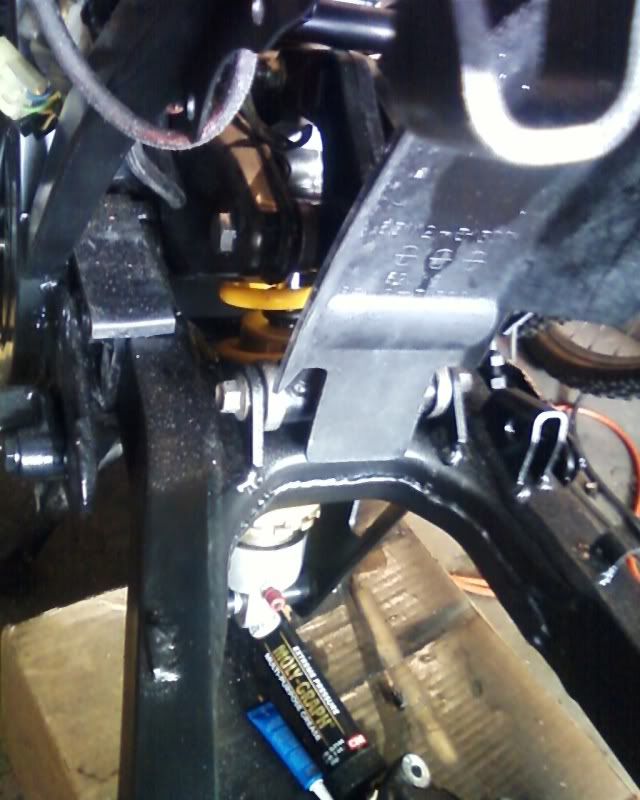

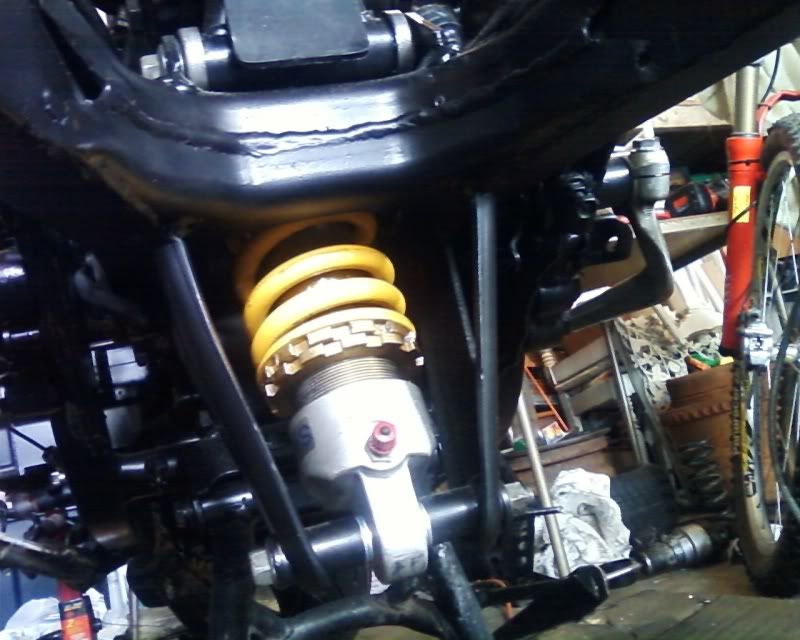

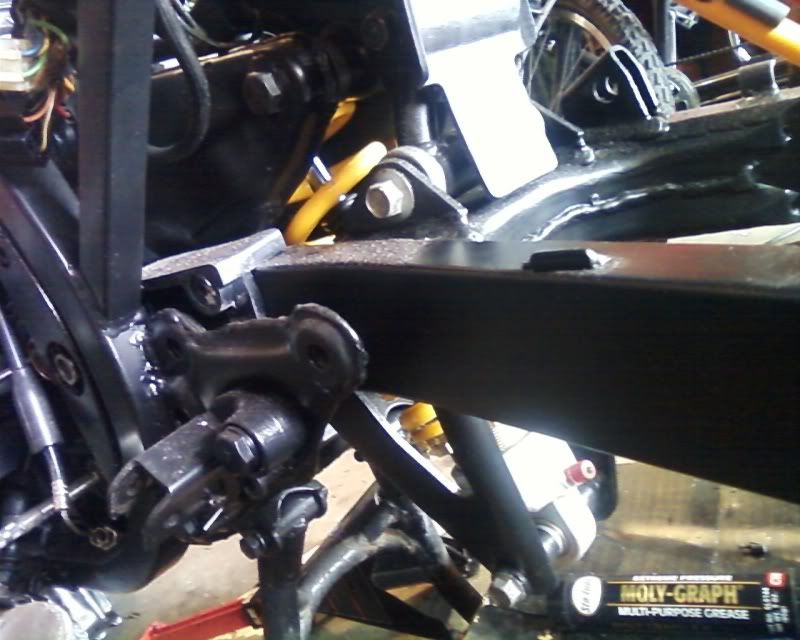

            I used a Ducati Monster M900 Shock. This shows the Ducati spring but it was way too hard (it came just about into range when I had my nephew on the back so 320lb ish total!)







            page again: http://s6.photobucket.com/user/salty...0679482&page=9

            I put the stock spring on & cranked up the adjuster as the spring length is different but it fits & works fine. It's tough to adjust this shock once fitted. You need a couple of washers for one end of it to take up the space where the axle goes through & also need to relieve the casting mark (split line) on the top of the eye. 30 secs with a file. Removes about 1mm of material...
            Last edited by salty_monk; 03-06-2018, 02:33 PM.
            1980 GS1000G - Sold
            1978 GS1000E - Finished!
            1980 GS550E - Fixed & given to a friend
            1983 GS750ES Special - Sold
            2009 KLR 650 - Sold - gone to TX!
            1982 GS1100G - Rebuilt and finished. - Sold
            2009 TE610 - Dual Sporting around dreaming of Dakar..... - FOR SALE!

            www.parasiticsanalytics.com

            TWINPOT BRAKE UPGRADE LINKY: http://www.thegsresources.com/_forum...e-on-78-Skunk/

            Comment


              #7
              These are the right shock:



              1980 GS1000G - Sold
              1978 GS1000E - Finished!
              1980 GS550E - Fixed & given to a friend
              1983 GS750ES Special - Sold
              2009 KLR 650 - Sold - gone to TX!
              1982 GS1100G - Rebuilt and finished. - Sold
              2009 TE610 - Dual Sporting around dreaming of Dakar..... - FOR SALE!

              www.parasiticsanalytics.com

              TWINPOT BRAKE UPGRADE LINKY: http://www.thegsresources.com/_forum...e-on-78-Skunk/

              Comment


                #8
                Originally posted by salty_monk View Post
                You can see some pics of the one I did a few years back...


                That is cool!
                sigpic
                1983 GS1100ES (Bought July 2014)
                1983 GS1100E (Bought July 2014)
                1985 GS700ES (Bought June 2015) Sold
                On Christ the Solid Rock I Stand
                All Other Ground is Sinking Sand

                Comment


                  #9
                  I will take a look on them. My shock seems not to be dead, it is actually working, but last year it was kind of empty on oil after 25 years of use))) so I just add some 10w30 with help of suringe and needle through the rubber gasket on the top of the shock there is small alain set screw after removal of it, it was possible until I felt shock start working again. So shock starts damping fine and works well. But my problem is it feels very "stiff", and I can feel road through it) so probably viscosity on the oil was a little bit too high).

                  I feel like Necromant sometimes making things alive which suppose to be dead...

                  Comment


                    #10
                    Originally posted by salty_monk View Post
                    You can see some pics of the one I did a few years back...



                    (Link to pics if you can't see the linked one http://s6.photobucket.com/user/salty...0679482&page=5)

                    I used a Ducati Monster M900 Shock. This shows the Ducati spring but it was way too hard (it came just about into range when I had my nephew on the back so 320lb ish total!)







                    page again: http://s6.photobucket.com/user/salty...0679482&page=9

                    I put the stock spring on & cranked up the adjuster as the spring length is different but it fits & works fine. It's tough to adjust this shock once fitted. You need a couple of washers for one end of it to take up the space where the axle goes through & also need to relieve the casting mark (split line) on the top of the eye. 30 secs with a file. Removes about 1mm of material...
                    Couldn't see the pics.....
                    Last edited by hillsy; 03-08-2018, 06:48 AM.
                    Current:
                    Z1300A5 Locomotive (swapped my Intruder for it), GS450 Cafe Project (might never finish it....), XT500 Commuter (I know - it's a Yamaha :eek:)

                    Past:
                    VL1500 Intruder (swapped for Z1300), ZX9R Streetfighter (lets face it - too fast....), 1984 GSX750EF, 1984 GSX1100EF (AKA GS1150)
                    And a bunch of other crap Yamahas....

                    Comment


                      #11
                      list and prices

                      So after some time and going through entirely all bike. as I promised I'm putting in here list of change components and where I got them from

                      bike Suzuki Gs 750/700 ES 1985
                      parts cost where got it from
                      1 Balanced front wheel 11$ Local dealer shop
                      2 Front wheel tire 60 Local dealer shop
                      3 SS Braided brake hoses ( read) w/o antidive hoses 100 Apex
                      4 Front fork sonic springs 90 Sonic
                      5 Rear bearings 40 Local dealer shop
                      6 Sprockets front/rear 15/40 50 Local dealer shop
                      7 Kawasaki 1984 zx900Gauge Cluster 60 Salvage Yard(brand new state)
                      8 ACCEL 140403 Universal Super Coil Kit 183 Amazon
                      9 oil rotella t4 15w45 22 Auto shop rotella T4
                      0 oil filter x2 15 Local dealer shop
                      11 Air filter x1 + oil for it 35 Local dealer shop
                      12 speedo cable suzuki 30 Local dealer shop
                      13 clutch cable 15 Local dealer shop
                      14 Clutch springs 12 Local dealer shop
                      15 EBC SH Brake pads all 2xFron 1x back 70 Amazon + ebay
                      16 Dust seals for the fork 40 Local dealer shop
                      17 Suspention oil front fork 1l viscosity 7.5 13 Local dealer shop
                      18 Fork slide bushings 40 Local dealer shop
                      19 Stearing stem bearings 40 Local dealer shop
                      20 Iridium Spark plugs 34 Amazon
                      21 LED bulbs for dashboard backlight 5
                      22 Front brakes twin pot KIT 275 Salty_monk big Thanks him!
                      23 Mirrors 13 ebay
                      24 Luggage side support + rear something 20 Salvage yard
                      25 handlebar grips 15 ebay
                      26 Front wheel bearings 13 ebay
                      27 Drive sprocket Lock nut 19 ebay
                      28 Drive sprocket seal 10.5 ebay
                      29 Clutch lock nut APE special... 32 ebay
                      30 Clutch push rod seal 11 ebay
                      31 reflective rim tape for 17" (got wrong size) 20 ebay
                      32 Brake fluid DOT4 Local auto shop
                      33 Patience and procedure following pricelles
                      total 1,394$

                      Comment


                        #12

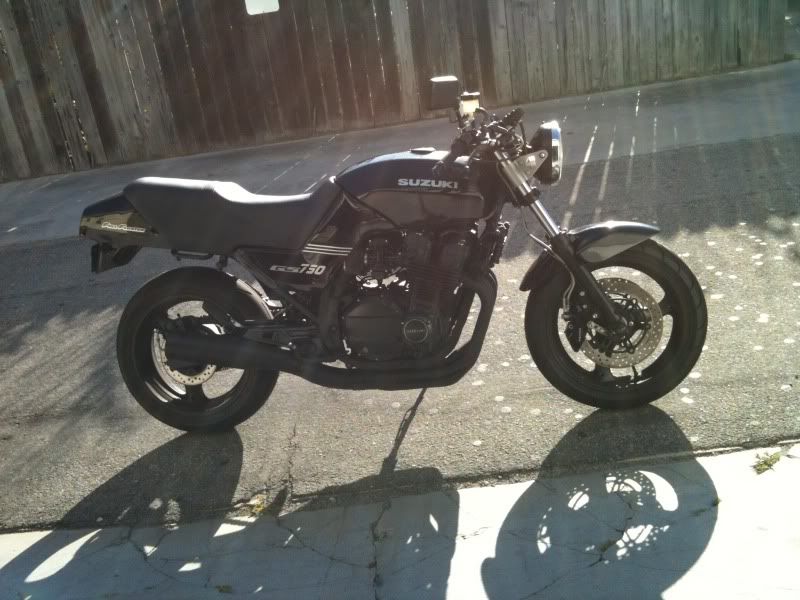

                        How it was and how she looks now

                        How it was





                        New dash


                        No cargo


                        Loaded but not everything



                        Sorry for posting just a links for the pictures, but somehow I did not find any way to put he link from google photos there...Iknow about photobucket etc....just lazy tonight.

                        Any guestions PM me
