1981 gs750 (gs750e) Retro Racer project

Collapse
X

  • Filter
  • Time
  • Show
Clear All
new posts

    Originally posted by 93Bandit View Post
    Sorry to hear about your speedo mishap. Glad you made it home safely, though. That's all that really matters.

    Why not just buy a new/used speedo assembly?
    Because I think it will be easier to fit spacers for the new brake rotors if I don't have to take the speedo assembly into consideration. And I already have the parts (the magnetic bolt)

    Comment


      Originally posted by LarsKroghStea View Post
      Because I think it will be easier to fit spacers for the new brake rotors if I don't have to take the speedo assembly into consideration. And I already have the parts (the magnetic bolt)
      Gotcha. Carry on!
      - 1983 GS850L ~ 30,000 miles and going up - Finally ready for a proper road trip!
      - 1977 GS750B - Sold but not forgotten

      Comment


        Well.. I've been drilling some holes and the "corner"-holes on the nuts are a pain to drill. The bolts are OK, I drill them at a 90 degree angle, but the nuts.. I've given up on them. Mostly because I dont have any 2mm drill bits left :/ 3mm drill bits hold well, and I'll use 2,5mm drill bits for the rest of the perpendicular holes (it's a national holiday today in Norway, and I can't get new drillbits). I think the problem is that the bits snag on the hardened surface when you push through on the other side. I've heard that drill bits for drilling circuitboards are cheap and work great for this. Maybe I'll try them later.The bolts for the brake discs will be OK when they are drilled and wired. I'll buy titanium bolts for the brake conversion later.


        For the sprocket bolts I've ordered these Pro-bolt pre-drilled aluminum nuts with steel core. They are very popular in MX competition and should hold up well. They also make them in titanium, but these were in store, and I don't want to wait.
        lspn10dbk_7 by Lars Krogh-Stea, on Flickr

        Comment


          Perseverance has turned frustration into joy once more I googled around on how to drill bolts and got some tips on drill-speed and pressure on drillbit. I've read before that small drillbits require high speed, but this guy said to use slow speed, max 1100 rpms. Geared mine to the lowest, wich is 550 rpm. He also said to oil the bit every 30 seconds :0 That told me I was way too impatient! I can now drill the bolts by listening to the sound the drillbit makes. If it makes a kind of crackling sound, the bit is either about to pack full and overheat or about to brake through the hardened surface on the other side. If the first is true, I back the bit out and clean it and reapply oil. If the bit is about to break through I'm very careful with how much pressure I apply. This was a bit tideous, but I didn't breake anymore drillbits. Took me about 1.5 hours to drill all the bolts for the front and rear discs. I also painted the center of the rear brake rotor. Pictures included as usual:


          Rear rotor, painted and drilled bolts torqued down, The one odd bolt is the magnetic one. Should have drilled it last, as it made the drillbit magnetic and a pain to clean.
          IMG_20200521_222827 by Lars Krogh-Stea, on Flickr


          This is how it was before:
          IMG_20200520_210733 by Lars Krogh-Stea, on Flickr


          This is how the safetywiring looks now. I went with connecting two in pairs instead of three. I watched a youtube clip of an older guy wiring a propeller for a small plane, and tried to copy what he did. He had several very good tips on how to twist the wires to keep them tightly in place.
          IMG_20200521_180148 by Lars Krogh-Stea, on Flickr

          Comment


            I'm sure you're pretty tired of me posting pictures of safetywire by now, but I recieved the new nuts today. Must have been an older version as they were NOT drilled Anyhow, as they do look much nicer than the ones I that are on now, I drilled them myself and put on a couple of nuts to see the results. Pretty satisfied
            2020-05-25_11-12-34 by Lars Krogh-Stea, on Flickr


            I also put together the GSXR fork to get a bether view of how it all fits together, and I must say I'm sceptic as to how I'm supposed to fit a spoked wheel between those calipers? The angle is little off on the picture where I measure. The more correct measurement is about 47mm (1.85inches). As they are radially mounted I could get some 320mm discs but that would only move them 1cm towards the narrower part of the wheel.
            2020-05-22_09-15-19 by Lars Krogh-Stea, on Flickr


            2020-05-22_09-15-57 by Lars Krogh-Stea, on Flickr


            2020-05-22_09-15-43 by Lars Krogh-Stea, on Flickr


            I checked the Cognitomoto wheel and they have laced it with all spokes on the inside. Mine are the usual inside/outside. If that's how it's done I'll need another set of spokes to get all of them in the correct angle, and then I might as well get a wider front rim/tire. then it starts to get expensive.. If I have to do the front wheel all over again, I will have to wait for the winter to do the fork swap :/
            cognitomotowheel by Lars Krogh-Stea, on Flickr

            Comment


              I have mounted the hoodlatches for the "quick-release" seat:


              IMG_20200530_210232 by Lars Krogh-Stea, on Flickr


              Cut the bolts to length, drilled and tapped them. Then I mounted them on flat piece of steel:
              IMG_20200530_210210 by Lars Krogh-Stea, on Flickr


              IMG_20200530_210059 by Lars Krogh-Stea, on Flickr


              I will cut this plate to size and screw it on to the frame of the rear seat:
              IMG_20200530_210104 by Lars Krogh-Stea, on Flickr


              This is how it looks underneath the rear fender when the seat is locked in place:
              IMG_20200530_205935 by Lars Krogh-Stea, on Flickr

              Comment


                This look like a proper build. Wil follow this thread.

                Comment

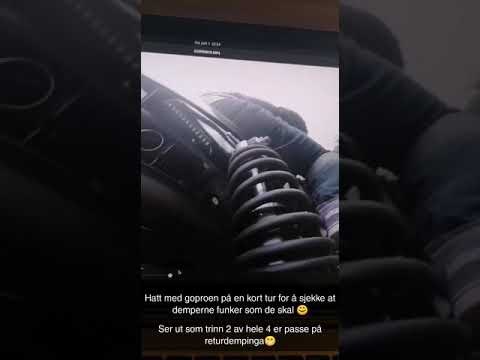

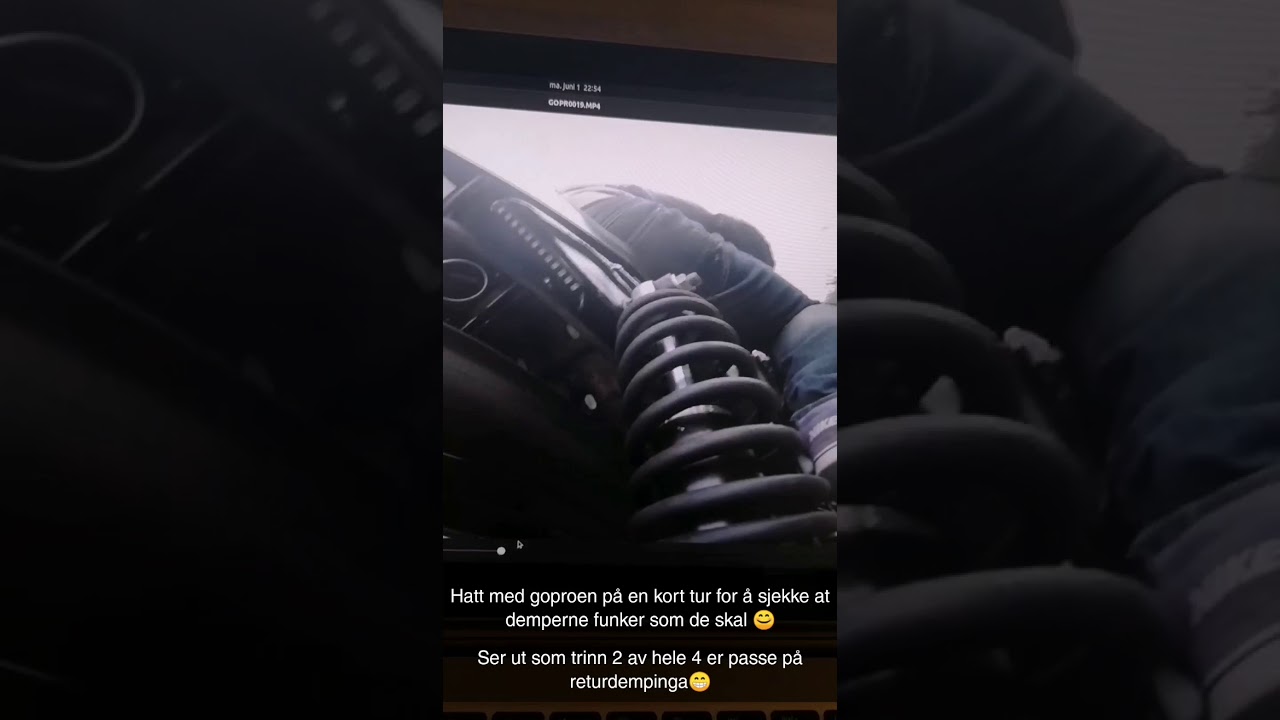

                  Did a test run with a GoPro mounted to the swingarm to check how the shocks work after rebuild. These are vintage Koni 7610 with the preload set to the lowest out of 3 (twist sleeve) and rebound set to 2 out of 4 (twist dial on top). They're filled with 5W fork oil. The short videoclip is from passing over a speed bump at moderate speed. You can also spot one of the hood-locks. The seat stays well in place.

                  Comment


                    As the Covid situation drags out, and I'm busy working overtime at the hospital, I made the decision to buy the Cognitomoto front wheel. This wheel costs more than I paid for the whole bike, but there's no way I'm gonna have time to do all the nessesary modifications to my old front front wheel. This will be my xmas gift to myself, a reward for working all the long hours:

                    photo_2020-11-27_23-48-38 by Lars Krogh-Stea, on Flickr
                    Last edited by LarsKroghStea; 11-28-2020, 12:35 PM.

                    Comment


                      That wheel is beautiful.
                      2@ \'78 GS1000

                      Comment


                        I've done some preparations ahead of the fork swap. Put the before and after measurements in to a free calculator i found online:



                        The graphic presentation looks like this:
                        forkswap_2 by Lars Krogh-Stea, on Flickr

                        As you can see, the fork is a bit shorter (2") and the wheels aren't as tall. The rake changes from 28 to 26,4° and the trail changes from 4,3" to 5". Also, the wheelbase is shortened by 2", part because of going away from leading axle and part from the framedrop resulting from the shorter fork. The triple offset i almost identical, but the offset is still cut in half because the leading axle adds another 1,2" (30mm). I've kept the rim diameter equal to stock, but I've changed tyres to 150/70-18 on the rear (4.25" rim, ran this tyre this summer and I'm loving it) and 120/70-19 in the front (3.5" Cognito-moto wheel being built as we speak). Ran with 100/90 on spoked 79' GS-wheel this summer. I think I've avoided spooky turn-in problems by not swapping in a 17" front wheel while lengthening the trail, but I would love if anyone could look over the numbers and tell me if I'm running into any surprises
                        The measurements are not exact, but pretty close unless I've done any measuring or conversion errors (I'm taking measurements in mm).

                        forkswap_1 by Lars Krogh-Stea, on Flickr

                        Comment


                          Originally posted by LarsKroghStea View Post
                          I've done some preparations ahead of the fork swap. Put the before and after measurements in to a free calculator i found online:



                          The graphic presentation looks like this:
                          forkswap_2 by Lars Krogh-Stea, on Flickr

                          As you can see, the fork is a bit shorter (2") and the wheels aren't as tall. The rake changes from 28 to 26,4° and the trail changes from 4,3" to 5". Also, the wheelbase is shortened by 2", part because of going away from leading axle and part from the framedrop resulting from the shorter fork. The triple offset i almost identical, but the offset is still cut in half because the leading axle adds another 1,2" (30mm). I've kept the rim diameter equal to stock, but I've changed tyres to 150/70-18 on the rear (4.25" rim, ran this tyre this summer and I'm loving it) and 120/70-19 in the front (3.5" Cognito-moto wheel being built as we speak). Ran with 100/90 on spoked 79' GS-wheel this summer. I think I've avoided spooky turn-in problems by not swapping in a 17" front wheel while lengthening the trail, but I would love if anyone could look over the numbers and tell me if I'm running into any surprises
                          The measurements are not exact, but pretty close unless I've done any measuring or conversion errors (I'm taking measurements in mm).

                          forkswap_1 by Lars Krogh-Stea, on Flickr
                          Hi Lars,

                          I've looked into this some time ago:
                          Basic maths for fork conversions (thegsresources.com)
                          Basically lowering the front end by 1" will decrease the rake by 1 degree.
                          This corresponds to your numbers.
                          As you are not changing the diameter of the front wheel, the trail ( with the reduced rake) now only depends on the offset of the triples.
                          Decreasing the offset increases the trail and your numbers seem right but I would use my formula to check the numbers.
                          In my view the optimal numbers are 25° of rake and 100 mm of trail like most modern bikes.
                          It's difficult to get to these values on our bikes specially if you keep the 19" front wheel.
                          The bonus is that the bike will be very stable but slow to turn in...
                          Congrats on the project!
                          sigpicJohn Kat
                          My bikes: CB 77, GS 1000 ST Cafe Racer with GSXR 1052 engine, GS 1000 ST, XR 41 Replica with GS 1085 engine,
                          GS 1100 SZ Katana with GS 1135 EFF engine, KTM Superduke 1290 R 2020

                          Comment


                            Just a suggestion to make your project more complex, vintage racers cut and weld the head tube on at a steeper angle/rake like modern sport bikes.
                            However, I don't think I'd do that unless I was seriously competing on track.
                            On my country roads I find the standard rake of my GS1100G with it's 19" wheel gives a steady trustworthy direction into and through all the difficult turns. I've raised the rear and lowered the front.
                            The steeper rake and smaller 17" wheel on my 87 CBR600, kinda turns too quick and I'm not trusting it as much. I see a lower speed on the speedometer through the same turns.
                            Last edited by Buffalo Bill; 12-07-2020, 09:59 AM.
                            1982 GS1100G- road bike
                            1990 GSX750F-(1127cc '92 GSXR engine)
                            1987 Honda CBR600F Hurricane

                            Comment


                              Thanks for the info Your posts brings up something I'm curous about. Longer trail means more straight line stability, but at the same time people report "too quick" turn in. My guess is that with too much trail, the wheel will react when the bike leans over by wanting to flip over, into the turn. This makes the bike unpredictable. The whel wants to stay straight until it suddenly wants to turn too quickly. My feeling (and it's just really a semieducated guess) is that this is most pronounced with a smaller diameter wheel. Does anyone have any facts to support/contradict this? Will also read the thread you referenced

                              Comment


                                Originally posted by LarsKroghStea View Post
                                Thanks for the info Your posts brings up something I'm curous about. Longer trail means more straight line stability, but at the same time people report "too quick" turn in. My guess is that with too much trail, the wheel will react when the bike leans over by wanting to flip over, into the turn. This makes the bike unpredictable. The whel wants to stay straight until it suddenly wants to turn too quickly. My feeling (and it's just really a semieducated guess) is that this is most pronounced with a smaller diameter wheel. Does anyone have any facts to support/contradict this? Will also read the thread you referenced
                                You might also be interested in this thread I wrote ?
                                A modern fork upgrade for 17,18 and 19" wheels - Page 4 (thegsresources.com)
                                sigpicJohn Kat
                                My bikes: CB 77, GS 1000 ST Cafe Racer with GSXR 1052 engine, GS 1000 ST, XR 41 Replica with GS 1085 engine,
                                GS 1100 SZ Katana with GS 1135 EFF engine, KTM Superduke 1290 R 2020

                                Comment
