My starter button fell out!

[Argee]

Hi everyone,

Today my starter button fell out!

Thankfully it was just as I used it and not while I was riding - so I have the button and the spring. What I don't have is the thing (whatever that is) that holds everything in place in the handle.

I've had a look at the expanded diagrams but nothing shows the detail of the starter button.

I would be very grateful if someone could post a picture of the bit I'm missing so that I can make one - unless they're for sale somewhere... and not ridiculously expensive.

Thanks in advance.



[Argee]

Photo 1

Photo 1

One view of the empty socket.



[Argee]

Another view..



[zuluwiz]

Those buttons are molded in one piece with a collar on the inside end. If the collar has broken off (what it sounds like) then the button will need to be replaced. Finding replacement internal parts for the handlebar control units is a non-trivial task. Best bet would be that some kind member would have one he will let you have.



[Argee]

Solved it! :-D

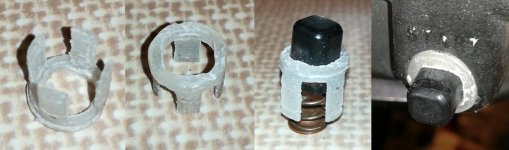

I measured the hole and the button and designed a plastic insert then 3D printed it. Pictures below (NB in the 3rd image I've got the spring upside down.) I used Shoe Goo to glue it in place. Shoe goo is rubber type glue that should resist vibration but not make it impossible to remove if I have to.
If anyone needs the .STL file, let me know.



[Guest]

Nicely done! It's not every day you see a 3D printed solution to a problem with an old GS.

Cheers!



[steve murdoch]

Well done, Argee.

Knowing nothing about 3D printers, i have a couple general questions.
Is there different materials that can be used?
Are any of them heat resistant, like engine temps?
Would any of them be chemical resistant? Stand up to gasoline?



[Argee]

Hi Steve,
